Jatropha and my ignorance: a retrospective

I don't know a damn thing about jatropha oil.

Some time ago, I heard that a friend of mine was starting a biofuels company that would import jatropha from Africa and turn it into biodiesel. At the time, I was skeptical of the plan. "Jatropha? What the hell is jatropha? Your feedstock is something I've never heard of-- how plentiful can that be?"

The next day, I was in the MIT library reading renewable energy journals, and I noticed an announcement that a 15 MW combined heat and power plant run on jatropha oil was under development in Belgium.

It's a little late, but I wanted to let the internet know that I was wrong, and my dear friend Jesse was right. I don't know a damn thing about jatropha oil.

What's new at the 4th Annual Conference on Clean Energy in Boston

I'm taking notes at the 4th Annual Conference on Clean Energy in Boston today; I figured I might as well share what I learn with the world.

The Massachusetts Technology Collaborative has funded MTPV, a start-up in the Boston University Photonics Center, with $500k. (I think this is actually not news to the world, but it was news to me.) MTPV has an interesting technology. Their scheme is a variation on thermophotovoltaics (TPV). In conventional TPV, you put a very hot plate next to a solar cell. The cell absorbs the radiation coming off the plate, allowing you to get electricity from heat. Unfortunately, the efficiency is quite low. MTPV does the same thing, but with the hot plate ridiculously close to the solar cell. Their claim is that when the gap between the cell and the hot plate reaches the micron level (the M in MTPV is for micron), the efficiency increases dramatically, and they have some test data to prove it.

Maintaining a consistent micron-scale gap is a mechanical challenge. They do it by putting small bumps on the surface of their hot plate and then clamping the plate to the cell. They have some clever geometry that minimizes the heat transferred through the bumps, as that is also an efficiency loss.

Investment pitch #1 Srikanth Gopalan from Boston University described a "solid oxide membrane" which takes in waste and steam and emits syn-gas and 7 cc/min of hydrogen gas per cm^2 of membrane. Dr. Gopalan and his colleague Dr. Pal have three year plan that requires $500k per year for device testing and scale-up by 2011.

Investment pitch #2 Scott Faris, CEO of Planar Energy Devices, says that Planar is making metallic lithium batteries. 4x capacity and 10x lifetime, 80% cost reduction. Doesn't catch on fire like metallic lithium batteries used in cellphones in the past. There are no liquids in their batteries. They bury the lithium anodes under solid glass electrolyte. Faris says that Planar is using "the Miley Cyrus strategy,"-- the best of both worlds-- using thin film technologies, but scaling up to the size of prismatic batteries.

Planar has two products in development at present: a small battery called the PowerPlane: 25 x 29 mm, 12 mAh, and the larger PowerBlade, 100 mm by 100 mm, 4.8 Ah, 520 Wh/L. The PowerBlade is being tested by the military at present. Planar is pursuing Series B funding for pilot production.

Side note: Faris followed the irritating standard of the battery industry and quoted capacity in amp-hours rather than watt-hours. Amp-hours is not a measure of energy capacity, but of the number of electrons that can be induced to flow out of the battery. For example, a 1200 mAh NiMH battery contains around 20% less energy than a 1200 mAh alkaline battery because the NiMH battery runs at ~1.2 V, while the alkaline runs at ~1.5 V.

I suspect that this amp-hours habit developed because lead-acid battery manufacturers wanted to hide the fact that their voltage dropped as the battery discharged, making the amps that come out near the end of a discharge cycle less powerful than the amps near the beginning. If you speak in terms of amp-hours, you can avoid this embarrassing truth. Generally, modern batteries have a much flatter discharge curve, so watt-hours ends up being a linear multiple of amp-hours. Modern batteries have much less to hide in this regard, though there is still the variation across chemistries to account for. Nonetheless, the habit persists throughout the battery industry.

Investment pitch #3 Andrew Dillon, CEO of Varentec, described their solid-state electronic transformer that operates at 20-50 kHz. Dillon claimed that their transformer is 10x smaller and lighter than those of competitors that operate at 1 kHz, and costs 25-40% less. Undersea transmission, as required of offshore wind turbines, requires DC for efficient operation; photovoltaics also produce DC, so making transformers will be a lucrative business in the next few years. They want $1M for their first 1 MW high-voltage DC system, which they hope to build in 8 months of 2009.

Investment pitch #4 John Thomson, President and CEO of Yield Energy. They are a biogas developer. There are already 5000 biogas plants in operation in Europe, but no utility scale plants in the US. They use expired food products from grocery stores and waste from restaurants as their feedstock. Negotiated exclusive rights to proprietary pre-processing technology from Fitec in Germany. They have 6 sites currently under development; the first is near Toronto, Canada.

Investment pitch #5 Chris Sauer of ORPC started with a bold statement: "We have saved the best for last today." They've raised $2M and have recently tested their kinetic tidal generator in the Bay of Fundy. The systems are "horizontally-mounted cross-flow turbines" that look like helical Darrieus windturbines or Gorlov turbines on their sides. The turbines are made of composites and foam so they float. They tie the turbines down to the sea floor for operation and release for service. Unlike their competitors in New York, Verdant Power, they have no cantilevered blades. Sauer says they can get 250 kW per bladeset in a 6 knot current; 1 MW in a module of 4. He claimed their costs are 6-7.5 cents/kWh for a location with a peak current of 6 knots.

If all goes according to plan, their first module of 4 bladesets will be installed in Q4 2010. Their first commercial installation will be in Q4 2011 in Western Passage up near Lubec. ORPC has raised $4.5M so far; they're hoping to close Series A funding $10M in Q1 of 2009.

One of their competitors, Natural Currents, also had a table in the expo hall.

Somerville locals Second Wind also had a booth in the expo hall. (Disclosure: my employer has worked for Second Wind.) They make various tools for measuring how much wind is available in different places. Their latest product, the Triton (540 kB PDF), looks like a megaphone the size of a dumpster, pointed at the sky, with a solar panel bolted to the side of it. The thing is absolutely amazing. It emits sound waves at a slight angle from the vertical. The reflections that come back are Doppler shifted, and staggered in time. The frequency shift is proportional to the air velocity and the delay is proportional to the height. They can change the direction of the signal, so they can tell wind direction too. Their range is around 160 meters. This is so much better than setting up a tower with a bunch of wind vanes and anemometers. I predict that these guys will own the market in a few years.

So that's how I spent my morning. The rest of the day was debugging a PLC in a warehouse.

FPGA programming

After a little bit of work and screwing around with installers, I have programmed an FPGA for the first time. I wrote a short bit of Verilog that creates a 4-bit counter in a Xilinx Spartan 3A FPGA. Now, when I feed the FPGA a 50 MHz square wave on a certain pin, it counts the rising edges and outputs the count on 4 digital lines. Of course, it has to start over when it gets to 15.

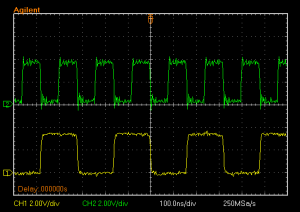

The oscilloscope screenshot below shows the two highest order bits counting up in binary in response to the input signal.

This may seem like a stupid way to spend your time-- who needs a 4-bit counter? You may be right.

However, the theory is that one skilled enough in Verilog might be able to develop not just a 4-bit counter, but, for example, a microprocessor with a custom co-processor designed for ephemeris calculations (or whatever calculations suit you). In reality, it's more likely that I would buy the Verilog to make the microprocessor and then just write the custom math processor myself.

It may prove a useless skill, but it definitely makes me less worried that some 14-year-old cyborg is going to make me obsolete in the next 45 minutes.

Television: still stupid after all these years

Sharon and I recently moved to a new house, which resulted in a switch from Speakeasy DSL to RCN cable. As a result, we now have a TV signal coming into our house. Strangely, I don't think I have ever lived in a building with a cable connection, except for a 6 month stint in graduate school when I was busy enough building robots that I don't remember what room my roommates had the TV in. But now, I get to explore television as a visitor from the mid-80s. Here's what I remember from 1984 or so:

• The Jeffersons: a show about a family with the last name "Jefferson"
• Rhoda:** a show about a woman named "Rhoda"
• The Dukes of Hazzard: a show about a family with the last name "Duke" who live in Hazzard County. To liven things up, these Dukes engage in hazardous motoring in an orange car. This makes the name of the show a pun.

Now, show titles are abbreviated: CSI, ER, 24, NCIS. I don't know what these shows are about, but from the ads I've seen, they're about law enforcement and medical emergencies. We now have multiple editions, like CSI: Miami and CSI: New York. There appear to be a lot of shows about law enforcement, but that may be just an illusion induced by shows with opaque titles like Naruto (from a tv.com summary, I gather: a demon fox, an evil spirit trapped inside a baby, and "shinobi," which is a word I don't know). With the exception of the evil spirit trapped in the baby, which is creepy, these are trends that I expect to see in America, the land of the fearful, where Sarah Palin gets airtime. I'm happy to report that despite 150 channels, I don't feel like I've missed much in the last 20 years.

However, I did discover something new that I didn't expect: the glorification of the mistreatment of kids. One instantiation is "The Principal's Office." Pitched as a reality TV show on TruTV (I guess "tru" is the reality TV version of "true"), the episode I saw followed a high school principal around the halls as he caught kids beating on each other. The kids were taken to the principal's office, where he yelled at them, and the kids squirmed in a mix of resentment and embarrassment. It's obvious that the presence of a camera escalates the conflict between the kids and the principal, so we can safely assume that the goal of the show isn't to document a good principal at work. All that leaves is a man yelling at kids. The "man yelling" part doesn't bother me in the least, but I don't like the "at kids" part. "Hey, troubled kid, if you let us humiliate you on national TV, we'll give you $200." (Review from the Boston Globe with some more details.)

The second show is one on FuelTV called Camp Woodward. It's a thinly disguised advertisement for a sports camp in Pennsylvania that focuses on skateboarding, BMX and rollerblading. In the episode fraction I saw, one of the counselors explains that when he's at home in Florida skateboarding by himself, he doesn't throw tantrums, but when he's trying to teach kids to skate, if he can't land tricks, he gets angry and swears. Another section of the show details the tribulations of a 13-year-old who thinks his $100 for food has been stolen by rollerbladers. After being berated by his mom via cell phone, he finds his money in his shorts pocket. He repeats the lesson that he has learned that you should deposit all your money at the camp canteen as soon as you can, lest someone steal it.

Both of these shows mystify me-- I don't understand why suffering kids are now fair game for entertainment.

Morbid prediction: a reality show with the following theme will be produced in the next decade: life of a child soldier or life in a refugee camp. I think that's the bottom, and I don't see what else is going to stop us.
